PLEXIGLASS FLOWMETERS FOR MEDIUM FLOW “R-R” AND
The “R-R” and “PL-R” series flowmeters are produced entirely in Plexiglas with a guided float available in different materials: AlSl 316, Hastelloj, PVC for aggressive liquids.
The precision of the instrument is: ±5%
The test pressure is 10 bars.
CHARACTERISTICS
| USE | Liquid and gas fluids |
| PRECISION | ±5% del f.s. |
| MAX WORKING PRESSURE | 10 bar |
| MAX WORKING TEMPERATURE | 70° C |
| BRASS FITTINGS AND TAP | AISI 304 o AISI 316 |
| STANDARD INLET TAP |

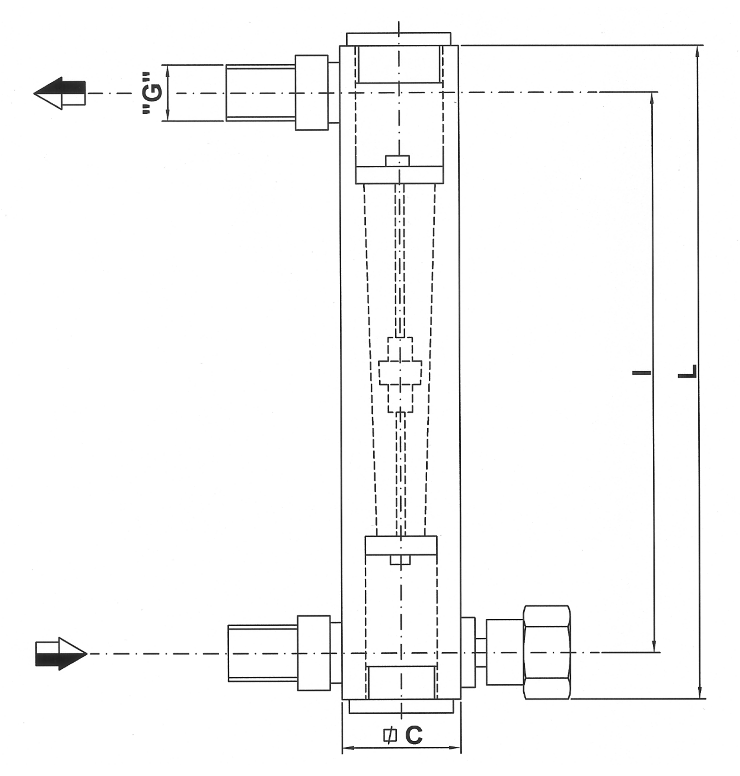

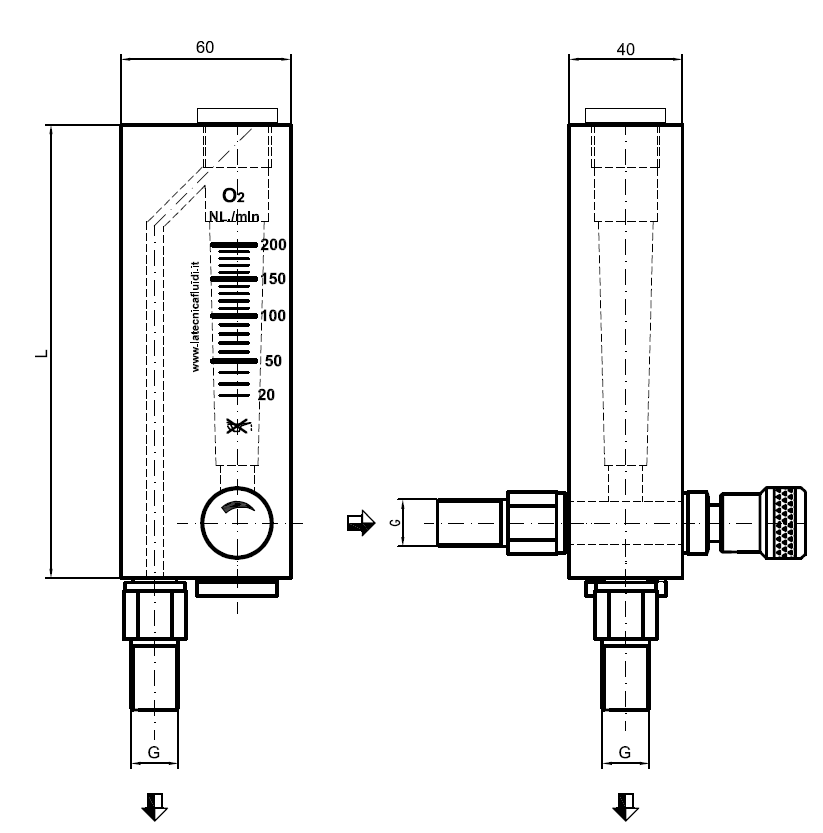

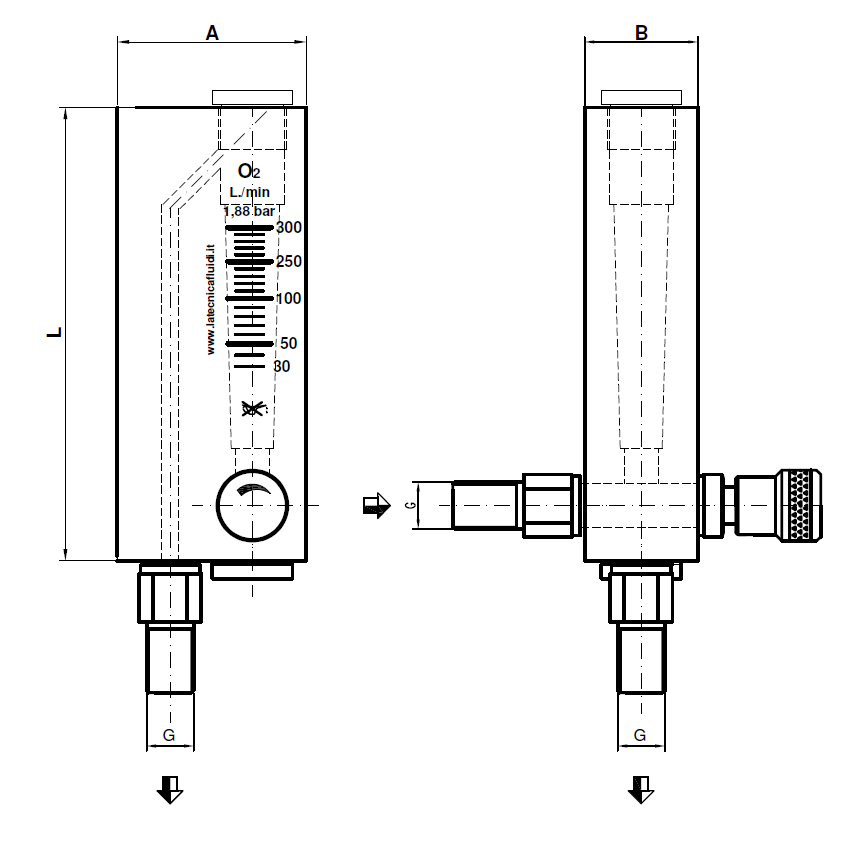

TECHNICAL DRAWING/DETAIL
ACCESSORIES
- Inductive proxy PNP FP/1 or FP/3 for minimum/maximum flow alarm or both
- Tap at the outlet
STANDARD FLOW RATES FOR WATER 20 ° C
| TYPE | WATER | AIR | Threaded connections | |||
| Lt/h | Nmc/h | G | L | I | C | |
| R-1/R | 120 | 6 | ||||
| 200 | ||||||
| 300 | 8 | 3/8″ – 1/2″ | 160 | 115 | 40 | |
| 400 | ||||||
| 500 | 10 | |||||
| R-2/R | 600 | |||||
| 800 | 15 | |||||
| 1200 | 3/8″ – 1/2″ | 190 | 140 | 45 | ||
| 1500 | 25 | |||||
| 2000 | ||||||
| TYPE | WATER | AIR | Threaded connections | |||
| Lt/h | Nmc/h | G | L | I | C | |
| PL-1/R | 120 | 6 | ||||
| 200 | ||||||
| 300 | 8 | 3/8″ – 1/2″ | 215 | 170 | 40 | |
| 400 | ||||||
| 500 | 10 | |||||
| PL-2/R | 600 | |||||
| 800 | 15 | |||||
| 1200 | 3/8″ – 1/2″ | 255 | 205 | 45 | ||
| 1500 | 25 | |||||
| 2000 | ||||||
The values shown are indicative, it is possible to provide full-scale flow rates other than those indicated according to the customer’s requests.
